The Wrights appear to be the first to make serious studied attempts to simultaneously solve the power and control problems. Both problems proved difficult, but they never lost interest. They solved the control problem by inventing wing warping for roll control, combined with simultaneous yaw control with a steerable rear rudder. Almost as an afterthought, they designed and built a low-powered internal combustion engine. They also designed and carved wooden propellers that were more efficient than any before, enabling them to gain adequate performance from their low engine power. Although wing-warping as a means of lateral control was used only briefly during the early history of aviation, the principle of combining lateral control in combination with a rudder was a key advance in aircraft control. While many aviation pioneers appeared to leave safety largely to chance, the Wrights’ design was greatly influenced by the need to teach themselves to fly without unreasonable risk to life and limb, by surviving crashes. This emphasis, as well as low engine power, was the reason for low flying speed and for taking off in a headwind. Performance, rather than safety, was the reason for the rear-heavy design because the canard could not be highly loaded; anhedral wings were less affected by crosswinds and were consistent with the low yaw stability.

We’ll start the story with the Wright Brothers. (Please note, for expediency we’re quoting from various sources, ex. this is from Wikipedia.) Using a methodological approach and concentrating on the controllability of the aircraft, the brothers built and tested a series of kite and glider designs from 1900 to 1902 before attempting to build a powered design. The gliders worked, but not as well as the Wrights had expected based on the experiments and writings of their 19th-century predecessors. Their first glider, launched in 1900, had only about half the lift they anticipated. Their second glider, built the following year, performed even more poorly. Rather than giving up, the Wrights constructed their own wind tunnel and created a number of sophisticated devices to measure lift and drag on the 200 wing designs they tested.^[62] As a result, the Wrights corrected earlier mistakes in calculations regarding drag and lift. Their testing and calculating produced a third glider with a higher aspect ratio and true three-axis control. They flew it successfully hundreds of times in 1902, and it performed far better than the previous models. By using a rigorous system of experimentation, involving wind-tunnel testing of airfoils and flight testing of full-size prototypes, the Wrights not only built a working aircraft, the Wright Flyer, but also helped advance the science of aeronautical engineer

According to the Smithsonian Institution and Fédération Aéronautique Internationale (FAI),[63][64] the Wrights made the first sustained, controlled, powered heavier-than-air manned flight at Kill Devil Hills, North Carolina, four miles (8 km) south of Kitty Hawk, North Carolina on 17 December 1903.^[65]

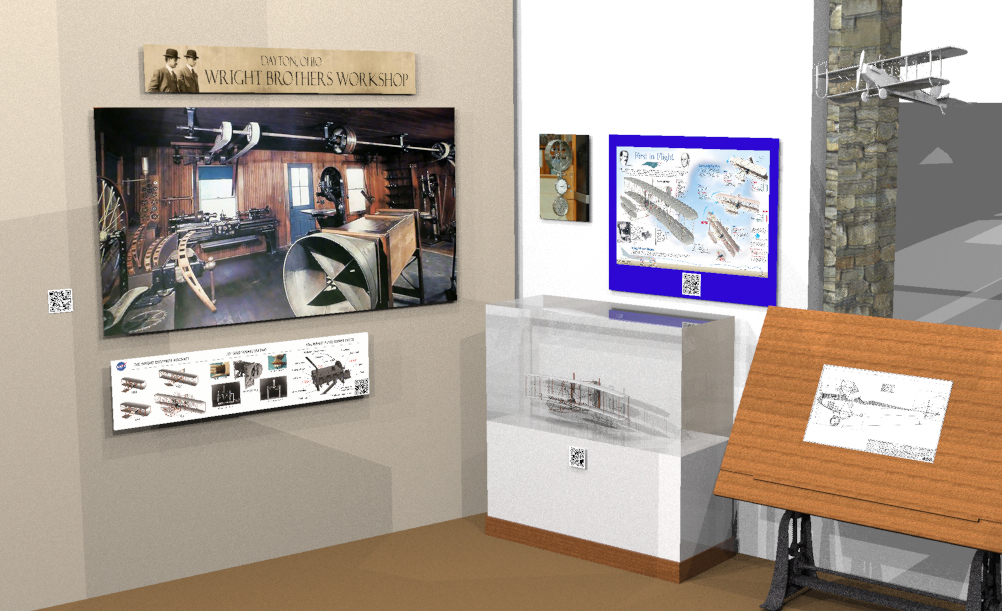

This display will have a detailed 1/16th scale model that’s made using an available Hasegawa kit. It’s built in a cutaway form that shows he underlying structure and elements that are on display in full scale such as a wing rib and fabric skin, engine and other items the Brothers had to create themselves using the tools they had available at the time and how they used them in their research and design.

One additional interactive feature would be the use of augmented reality to allow visitors to use their own cell phones and other devices to access online links and a 3d model that can be virtually flown.

Here’a a simple rendering of the 1/16th model with some pictures and info-graphics.

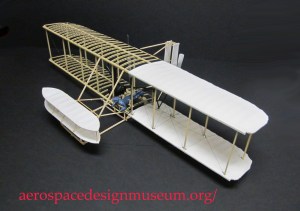

The cutaway model, 1/16th scale.

info-graphic
